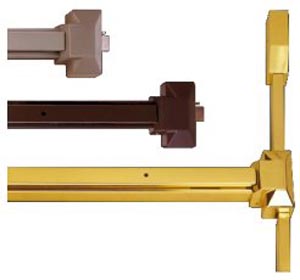

8000 Series Specifications:
• Material - Push bar painted heavy gauge steel, spring of stainless steel.
• Latch Bolts - 3/4' throw, stainless steel.
• Dead Latch Bolt - 5/8' stainless steel.
• Strike - For 5/8' stop, plus shim for 1/2' stop.
• Projection - 2-1/2' maximum, 1-7/8' depressed
• Reversible - Non-handed. Reversible for all functions and trims.
• For Door - 1-3/4' thick standard. Specify if other than 1-3/4' thick.
• Backset - 2-3/4'.
• 161 Cut Out - Device covers 161 cu out. Some trims require cover plate.
• Sex Bolts - Standard packaging for use with wood, composite or non reinforced doors on vertical rod devices.
• Door Width - For door 2`6' to 3`0' wide - 3`0' standard; for door 3`0' to 4`0' wide - 4`0' standard
• Stile Height - 4-1/4' min.
• Mounting Height - 40-5/16' from CL to finished floor recommended.
• Mounting - Furnished standard with sheet metal & machine screws.
• Cylinder - Schlage 'C' keyway, other keyways specify.
• Dogging - 1/4 turn, hex key dogging on non-fire-labeled devices.
• U.L. Listed - For panic hardware
• Operation - Inside by slight pressure on any point on the push bar at all times.
• Top Latchbolt - 3/4' throw, stainless steel.
• Top Deadbolt - 1/2' throw, steel bolt.
• Bottom Latchbolt - 3/4' throw, stainless steel.
• Door Height - For door up to 7`0' high - 7`0' standard. For door up to 7`0' to 8`0' - 8`0' standard.
|
|
|
 |
|
|
